Application:

To be used for wiring of in-building or electric instruments for 450/750V or 300/500V.

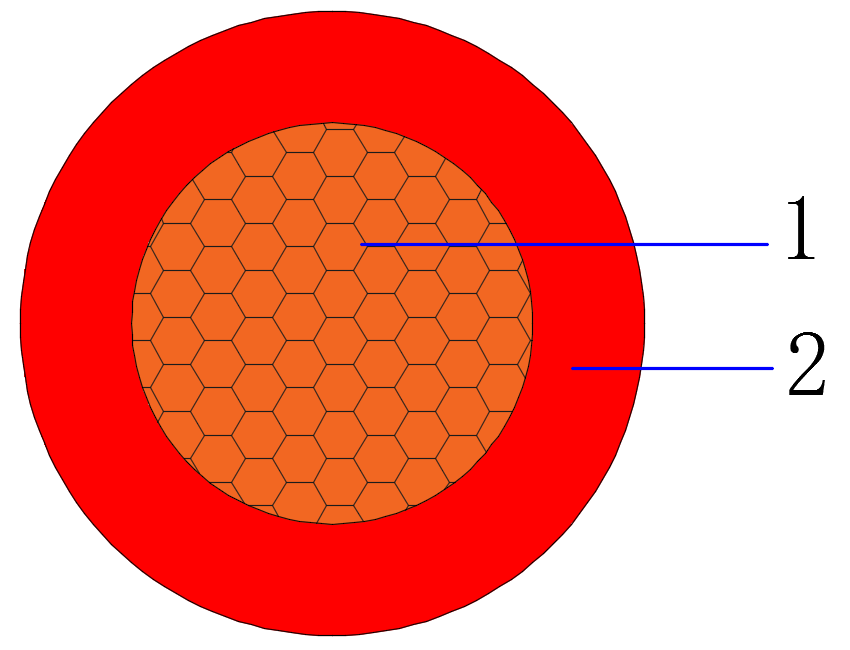

Construction:

1. Conductor: Class 1 solid copper or class 2 stranded (compacted) copper or class 5 stranded copper

2. Insulation: Polyvinyl chloride compound (PVC)

Cross Section:

450/750V 60227 IEC 01: 1.5~400mm2

450/750V 60227 IEC 02: 1.5~240mm2

300/500V 60227 IEC 05: 0.5~1.0mm2

300/500V 60227 IEC 06: 0.5~1.0mm2

300/500V 60227 IEC 07: 0.5~2.5mm2

300/500V 60227 IEC 08: 0.5~2.5mm2

Temperature:

Conductor normal operating temperature:

60227 IEC 01: -15℃~70℃

60227 IEC 02: -15℃~70℃

60227 IEC 05: -15℃~70℃

60227 IEC 06: -15℃~70℃

60227 IEC 07: -15℃~90℃

60227 IEC 08: -15℃~90℃

Min. laying temperatrue: 0℃

Electrical Characteristics:

Type Rated Voltage Test voltage Test time

60227 IEC 01 450/750V 2500V 5min

60227 IEC 02 450/750V 2500V 5min

60227 IEC 05 300/500V 2000V 5min

60227 IEC 06 300/500V 2000V 5min

60227 IEC 07 300/500V 2000V 5min

60227 IEC 08 300/500V 2000V 5min

Standard:

Conductor: IEC 60228

Structure: IEC 60227-3

Color:

To costumer request
