Application:

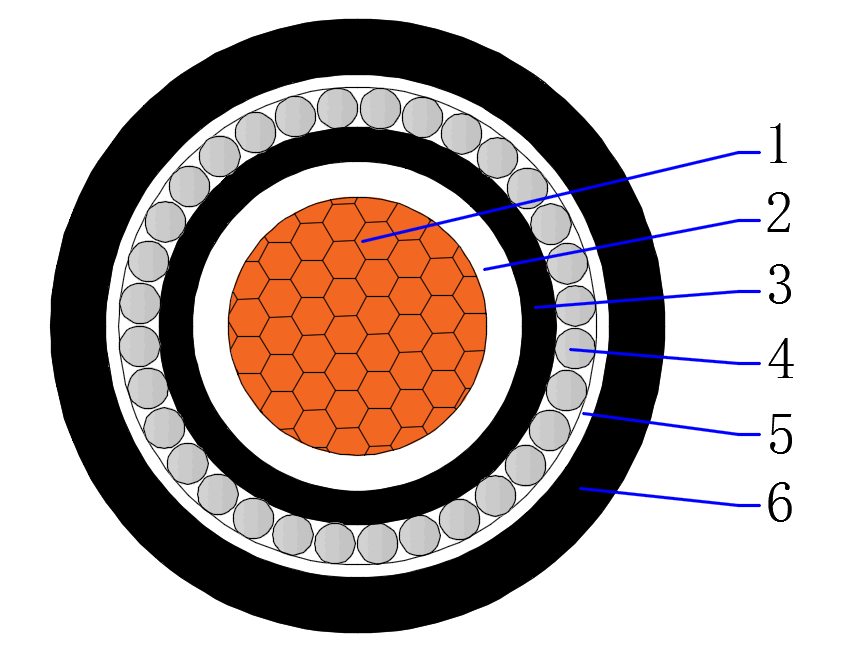

Construction:
1. Conductor - Plain annealed class 2 stranded (compacted) copper
2. Insulation - Polyvinyl chloride compound (PVC)
3. Inner sheath - Polyvinyl chloride compound (PVC)
4. Armor - Hard drawn aluminum wires
5. Binder tape - Non-hygroscopic material tape
6. Outer sheath - Polyvinyl chloride compound (PVC)

Cross Section:

1C1.5~1C800mm2

Temperature characteristics:

Conductor operating temperature: -15℃~70℃

Min. temperatrue laying condition: 0℃

Conductor short-circuit operating temperature (5s): 160℃(≤300mm2) 140℃(>300mm2)

Electrical Characteristics:

Rated voltage: 0.6/1 (1.2) kV

High voltage test: 3.5kV / 5min

Color:

Insulation: According to customer requirements

Outer sheath: Black or according to customer requirements

Standard:

Cable design: IEC 60502-1 or AS/ZNS 5000.1

Conductor: IEC 60228 or AS/ZNS 1125
