Application:

To be used for areas where the integrity of the electrical circuit is critical in maintaining power supply. Applications can be found in emergency lightings, control and power circuits, power stations, fire alarm systems, underground tunnels, communications systems, sewage treatment plants, lifts, escalators, and high-rise buildings.

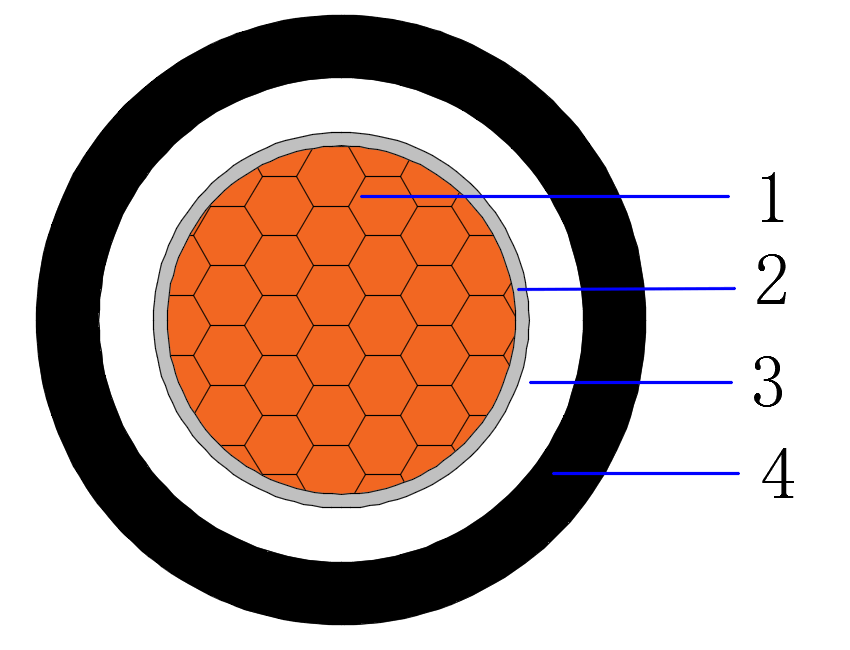

Construction:

1. Conductor - Plain annealed class 2 stranded (compacted) copper

2. Fire Resistant layer - Mica Tape

3. Insulation - Crosslinking polyethylene (XLPE)

4. Outer sheath - Low smoke halogen-free (LSZH)

Cross Section:

1 core: 1.5~630mm2

Temperature characteristics:

Conductor operating temperature: -15℃~90℃

Min. temperatrue laying condition: 0℃

Electrical Characteristics:

Rated voltage: 0.6/1 (1.2) kV

High voltage test: 3.5kV / 5min

Color:

Insulation: Natural or according to customer requirements

Sheath: Black or according to customer requirements

Standard:

Cable design: IEC 60502-1

Conductor: IEC 60228

Fire resistant : BS6387 CWZ
