Application: Fire Resistant - Mains and Sub-Mains, Fire Alarm Systems, Essential Services

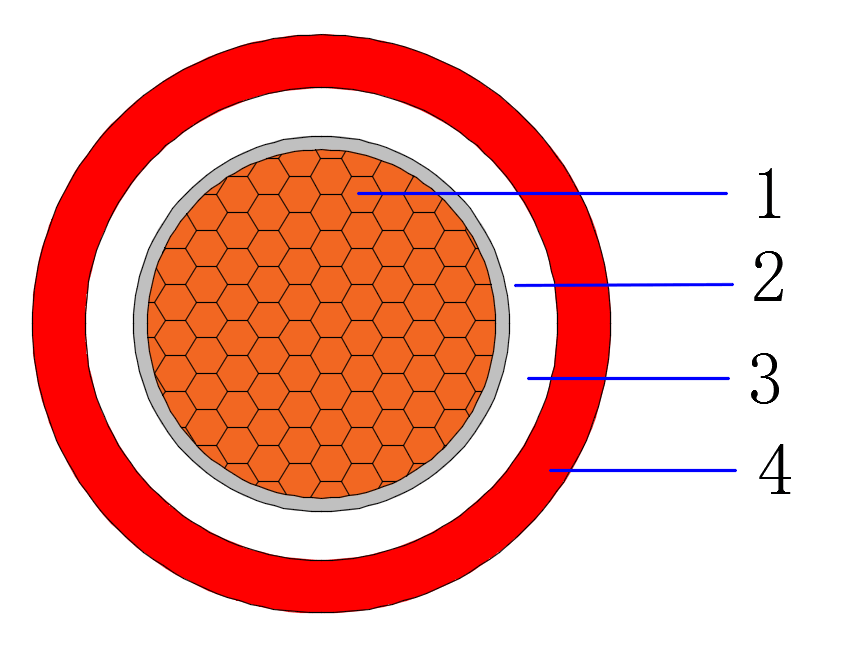

Construction:

1. Conductor - Plain annealed class 5 flexible copper

2. Fire Resistant layer - Mica Tape

3. Insulation - Cross-linked low-smoke halogen-free polyolefin compound (X-HF-110)

4. Outer sheath - Cross-linked low-smoke halogen-free polyolefin compound (HFS-110-TP)

Cross Section:

1 core: 1.5~630mm2

Temperature characteristics:

Conductor operating temperature: -40℃~110℃

Min. temperatrue laying condition: 0℃

Electrical Characteristics:

Rated voltage: 0.6/1 (1.2) kV

High voltage test: 3.5kV / 5min

Color:

Insulation: White or according to customer requirements

Sheath: Red or according to customer requirements

Standard:

Cable design: AS/NZS5000.1

Conductor: AS/NZS 1125

Fire resistant : AS/NZS3013 (WS52W)
