Application:

To be used for transmission of analogue and digit signal to control in public networks and industrial plants, electrical equipment and station control circuits, where higher mechanical protection is required.

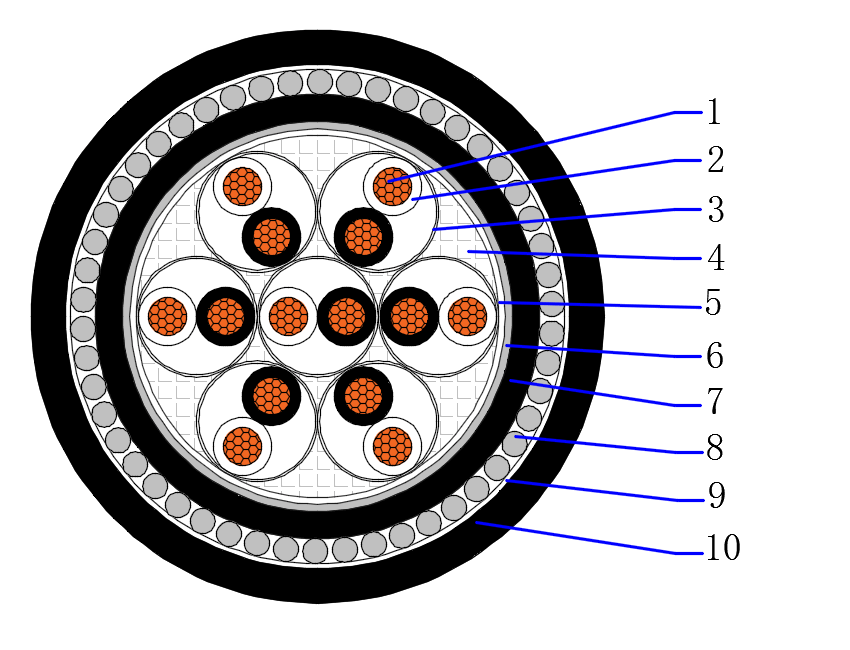

Construction:

1. Conductor - Plain annealed class 2 stranded or class 5 flexible copper

2. Insulation - Polyvinyl chloride compound (PVC)

3. Binder tape -Polyester tape

4. Filler - Non-hygroscopic material (if necessary)

5. Binder tape - Polyester tape

6. Screen - Al-PET tape with tinned copper drain wire

7. Inner sheath - Polyvinyl chloride compound (PVC)

8. Armor - Galvanized steel wires

9. Binder tape - Non-hygroscopic material tape

10. Outer sheath - Polyvinyl chloride compound (PVC)

Cross Section:

0.5~2.5mm2

Temperature characteristics:

Conductor operating temperature: -15℃~70℃

Min. temperatrue laying condition: 0℃

Electrical Characteristics:

Rated voltage: 500V

Core identification:

Pairs: Black and white, pairs are identified by numbers

Triples: Red, white, black, triples are identified by numbers

Sheath color:

Black or according to customer requirements

Standard:

Cable design: BS EN 50288-7

Conductor: IEC 60228 or AS/ZNS 1125
