Application:

100Base-TX

100Base-T

100VG-AnyLAN

1000Base-T(Gigabit Ethernet)

1000Base-TX

ATM

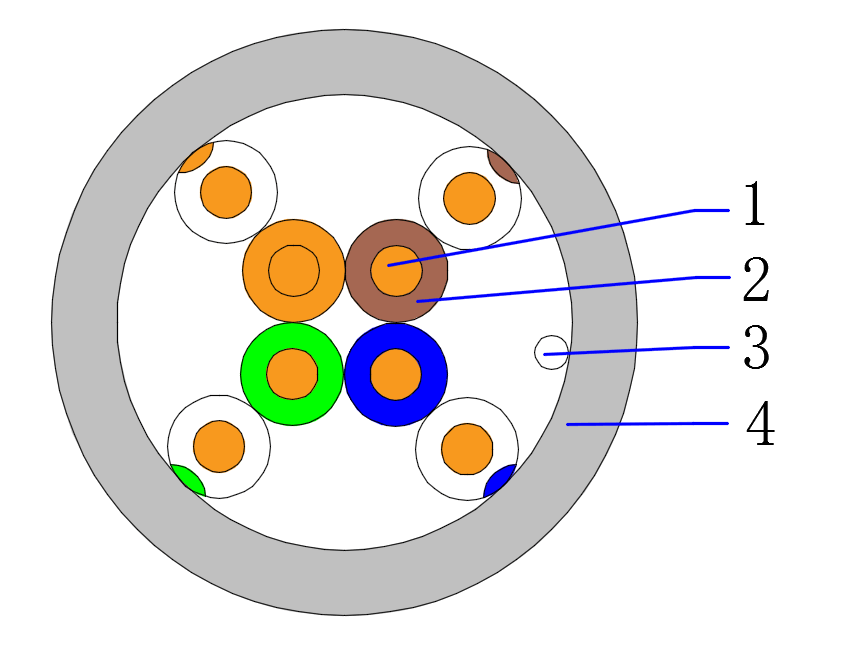

Construction:

1. Conductor - Bare solid copper, dia.0.5mm

2. Insulation - HDPE, dia.0.9mm

3. Rip cord

4. Jacket - PVC nominal thickness, 0.6mm

Temperature:

Rated temperature:60℃,75℃

Structure characteristics:

Approx. diameter of cable	Approx. weight of cable	Max. DC. Conductor Resistance at 20℃	Max. DC conductor resistance unbalance	Min. insulation resistance	Max. capacitance	Impedance(1.0-100.0 MHz)	Delay Shew (1.0-100.0 MHz )
mm	kg/km	Ω/100m	%	MΩ﹒km	nF/100m	Ω	ns/100m
5.1	32	9.5	5	5000	5.6	100±15	≤45

Technical Performance (100m)

Frequency	RL	ATT(20℃)	NEXT	PHASE DELAY	PSNEXT	ELFEXT	PSELFEXT
(MHz)	≥dB	≤dB	≥dB	≤ns	≥dB	≥dB	≥dB
1	20	2	65.3	570	62.3	63.8	60.8
4	23	4.1	56.3	552	53.3	51.8	48.8
8	24.5	5.8	51.8	546.73	48.8	45.7	42.7
10	25	6.5	50.3	545.38	47.3	43.8	40.8
16	25	8.2	47.2	543	44.4	39.7	36.7
20	25	9.3	45.8	542.05	42.8	37.8	34.8
25	24.3	10.4	44.3	541.2	41.3	35.8	32.8
31.25	23.6	11.7	42.9	540.44	39.9	33.9	30.9
62.5	21.5	17	38.4	538.55	35.4	27.9	24.9
100	20.1	22	35.3	537.6	32.3	23.8	20.8

Core identification:

1.White/Blue - Blue

2.White/Orange - Orange

3.White/Green - Green

4.White/Brown - Brown

Sheath color:Grey

Standard:

ISO/IEC11801

ANSI/TIA-568-C.2

YD/T1019
