LAN Cable
SFTP CAT6
SFTP 4Pairs cable-category6-250MHz PVC Sheath
Application:
100Base-TX
100Base-T
100VG-AnyLAN
1000Base-T(Gigabit Ethernet)
1000Base-TX
ATM

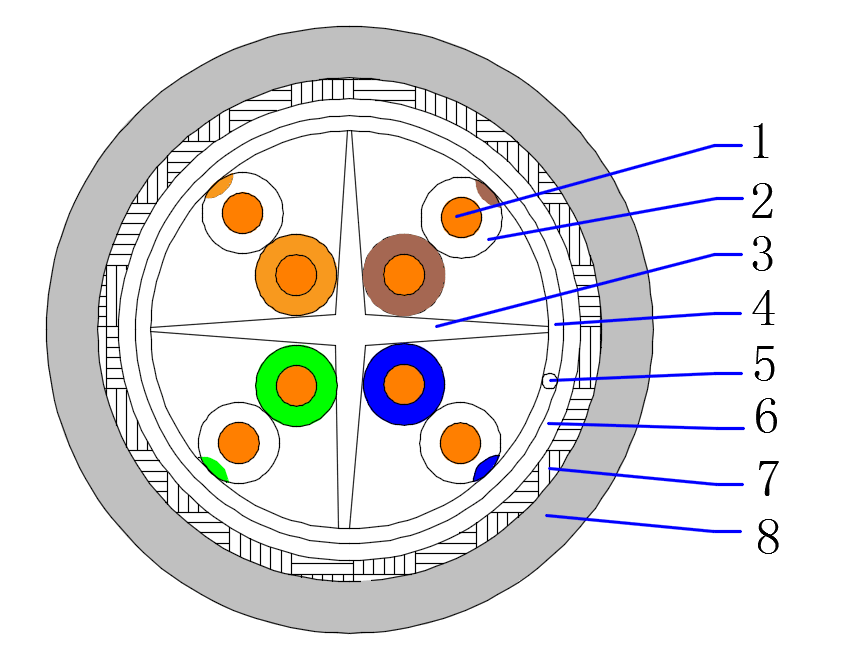

Construction:
1. Conductor - bare solid copper, dia. 0.58mm
2. Insulation - HDPE, dia. 1.16mm
3. Separator
4. Binder tape - PE tape
5. Drain wire - Tinned copper wire 1/0.5mm
6. Screen - AL-PE tape
7. Screen - Tinned copper wire braid, coverage 30%
8. Jacket - PVC, nominal thickness 0.6mm
Temperature:
Rated temperature:60℃,75℃
Structure characteristics:
|
Approx. diameter of cable |
Approx. weight of cable |
Max. DC. Conductor Resistance at 20℃ |
Max. DC conductor resistance unbalance |
Min. insulation resistance |
Max. capacitance |
Impedance(1.0-250.0 MHz) |
Delay Shew (1.0-250.0 MHz ) |
|
mm |
kg/km |
Ω/100m |
% |
MΩ﹒km |
nF/100m |
Ω |
ns/100m |
|
7.9 |
70 |
9.5 |
5 |
5000 |
5.6 |
100±15 |
≤45 |
Technical Performance (100m)
|
Frequency |
RL |
ATT(20℃) |
NEXT |
PHASE DELAY |
PSNEXT |
ELFEXT |
PSELFEXT |
|
(MHz) |
≥dB |
≤dB |
≥dB |
≤ns |
≥dB |
≥dB |
≥dB |
|
1 |
20 |
2.03 |
74.3 |
570 |
72.3 |
67.8 |
64.8 |
|
4 |
23 |
3.78 |
65.3 |
552 |
63.3 |
55.8 |
52.8 |
|
8 |
24.5 |
5.32 |
60.8 |
546.73 |
58.8 |
49.7 |
46.7 |
|
10 |
25 |
5.95 |
59.3 |
545.38 |
57.3 |
47.8 |
44.8 |
|
16 |
25 |
7.55 |
56.2 |
543 |
54.2 |
43.7 |
40.7 |
|
20 |
25 |
8.47 |
54.8 |
542.05 |
52.8 |
41.8 |
38.8 |
|
25 |
24.3 |
9.51 |
53.3 |
541.2 |
41.3 |
39.8 |
36.8 |
|
31.25 |
23.6 |
10.67 |
51.9 |
540.44 |
49.9 |
37.9 |
34.9 |
|
62.5 |
21.5 |
15.38 |
47.7 |
538.55 |
45.4 |
31.9 |
28.9 |
|
100 |
20.1 |
19.8 |
44.3 |
537.6 |
42.3 |
27.8 |
24.8 |
|
200 |
18 |
28.98 |
39.8 |
536.54 |
37.8 |
21.8 |
18.8 |
|
250 |
17.3 |
32.85 |
38.3 |
536.27 |
36.3 |
19.8 |
16.8 |
Core identification:
1.White/Blue - Blue
2.White/Orange - Orange
3.White/Green – Green
4.White/Brown – Brown
Sheath color:Grey
Standard:
ISO/IEC11801
ANSI/TIA-568-C.2
YD/T1019
